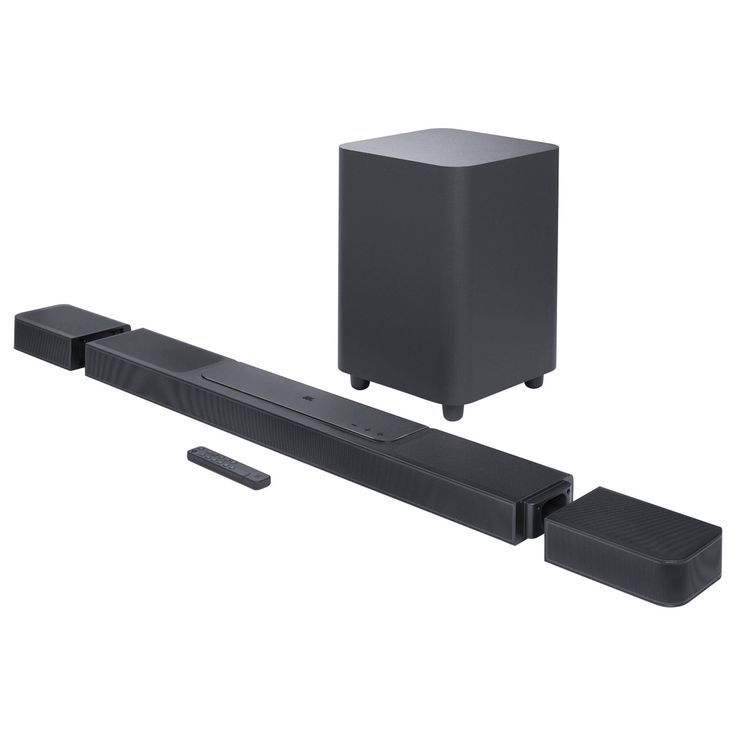

The ultimate 3D surround experience that will blow you away

You've never heard anything like the JBL Bar 1300 in your living room or anywhere else. More than just a great soundbar, it's a full sound system. It features MultiBeam and six up-ring drivers - four in the bar and two in the detachable battery-powered surround speakers that deliver massive Dolby Atmos® and DTS:X 3D surround sound, centering you in your music, movies, and games. 1170W of total output power and thrilling bass from a 10” subwoofer is more than enough to make the room shake. However, you'll never miss a word due to our PureVoice technology, which makes sure the dialogue is clear even when other sounds are at their loudest. When you want to enjoy your favorite tunes choose streaming via either AirPlay, Alexa Multiroom Music (MRM), or Chromecast built-inTM which gives you over 300 music streaming options. But that's not all. Your choices are as unlimited as you are because you can also pair the soundbar to your Bluetooth device. You can even take one of the detachable speakers (or both for powerful stereo sound) out to your kitchen or patio and enjoy listening to your favorite music or podcast there.

Features and Benefits
True Dolby Atmos®, DTS:X, and MultiBeamTM Surround Sound
Immerse yourself in theater-quality 3D sound. With four up-ring drivers in the main bar and two more in the detachable speakers, the JBL Bar 1300 delivers true Dolby Atmos® and DTS:X together with MultiBeamTM for an enhanced 3D surround sound experience.

Real surround sound with detachable surround speakers
Enjoy real surround sound without the hassle of extra wires and power connections. Just place the two detachable battery-powered surround speakers behind you and get swept away in amazing audio.

10” Wireless subwoofer
Thrilling, precise bass from a mighty 10” wireless subwoofer brings excitement to your action movies and emotion to your music.

PureVoice Dialogue Enhancement Technology
PureVoice technology uses our unique algorithm to optimize voice clarity to ensure you never miss a word of dialogue, even when the surround effects are at their peak.

1170W output power
With 1170 watts of total system power, the JBL Bar 1300 transforms your movies, music, and games into immersive sound experiences and pulls you into the middle of the action.

Built-in Wi-Fi with AirPlay, Alexa Multi-Room Music, and Chromecast built-in
Get ready to explore. Access over 300 online music streaming services through AirPlay, Alexa MRM, and Chromecast built-inTM. Enjoy all of your favorite audio content, Internet radio, and podcasts in high definition. The Wi-Fi connection also allows automatic software updates, so you can always enjoy the latest features.

Works with voice assistant-enabled speakers
Simply link the JBL Bar 1300 with your voice assistant-enabled device and you can instantly ask Alexa, Google Assistant, or Siri to stream all your favorite music to the soundbar.

HDMI eARC with 4K Dolby Vision passthrough
Enjoy uncompressed Dolby Atmos surround sound through a single HDMI cable thanks to the HDMI eARC connection. The three HDMI input connections also offer 4K video quality from a compatible video player or gaming console.

Easy sound calibration
Every room is different. Our calibration feature ensures that the JBL Bar 1300 delivers the best 3D surround effects for any interior and room layout.

Standalone Bluetooth speaker
You can pair one of the detachable wireless speakers to any Bluetooth device to use as a standalone speaker or pair them together for a powerful stereo sound.

JBL One App
Customize EQ and control all of your compatible speakers with a single convenient app. The JBL One app helps you easily set up the soundbar, personalize settings, and browse the integrated music services to add your new favorite song.

Technical Specifications
General
Model: BAR 1300 (soundbar unit), BAR 1300 SURROUND (detachable speaker) BAR 1300 SUB (subwoofer unit)
Sound system: 11.1.4 channel
Power supply: 100 - 240V AC, ~ 50/60Hz
Total speaker power output (Max @THD 1%): 1170W
Soundbar output power (Max @THD 1%): 650W
Surround speaker output power (Max @THD 1%): 2x 110W
Subwoofer output power (Max. @THD 1%): 300 W
Soundbar transducer: 6x (46x90)mm racetrack drivers, 5x 0.75” (20mm) tweeters, 4x 2.75” (70mm) up- ring full-range drivers
Surround speaker transducer: (46x90)mm racetrack driver, 0.75” (20mm) tweeter, 2.75” (70mm) up-ring full-range driver, 2x (48x69mm) rounded rectangle Passive Radiators Subwoofer transducer: 10” (260mm)
Networked standby power: < 2.0W
Operating temperature: 0°C - 45°C Lithium battery: 3.635V, 6600 mAh
Detachable surround speaker playtime: up to 10 Hours (may vary according to content type and volume level)

HDMI Specification
HDMI video input: 3
HDMI video output (with Enhanced Audio Return Channel, eARC): 1 HDMI HDCP version: 2.3
HDR pass-through: HDR10, Dolby Vision

Audio Specification
Frequency response: 33Hz - 20kHz (-6dB)
Audio inputs: 1 Optical, Bluetooth, USB (USB playback is available in US and APAC versions. For other versions, USB is for Service only.)

USB Specification
USB port: Type A
USB rating: 5V DC, 0.5A
Supporting file format: MP3
MP3 codec: MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3 MP3 sampling rate: 16 - 48 kHz
MP3 bitrate: 80 - 320 kbps

Wireless Specification
Bluetooth version: Main bar - 5.0, Detachable surround speaker - 5.2
Bluetooth profile: Main bar - A2DP 1.2 and AVRCP 1.5, Detachable surround speaker - A2DP 1.3 and AVRCP 1.6
Bluetooth transmitter frequency range: 2400MHz – 2483.5MHz
Bluetooth transmitter power: Wi-Fi network: IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)
2.4G Wi-Fi transmitter frequency range: 2412 - 2472MHz (2.4GHz ISM Band, USA 11 Channels, Europe and others 13 channels)
2.4G Wi-Fi transmitter power: < 20dBm (EIRP)
5G Wi-Fi transmitter frequency range: 5.15 - 5.35GHz, 5.470-5.725GHz, 5.725 - 5.825GHz
5G Wi-Fi transmitter power: 5.15-5.25GHz <23dBm, 5.25-5.35GHz & 5.47-5.725GHz <20dBm, 5.725-5.825GHz 2.4G wireless frequency range: 2406 - 2474MHz

What's in the box
1 x Main soundbar
2 x Detachable wireless surround speakers
1 x Wireless subwoofer
1 x Remote control with 2 x batteries
1 x Power cord
1 x HDMI cable
2 x L-shape wall-mount brackets (main bar) + 2 x U-shape wall-mount bracket (for surround speakers) kit with screws 2 x Side caps
1 x Quick Start guide
1 x Wall mount template

PROS:

• Breaks apart to deliver genuine Atmos surround from wireless battery-powered rears
• Detachable rears can be used as Bluetooth speakers
• Big sound for movies or music

CONS:

• Large subwoofer to fit in
• Best surround effect requires near side walls
